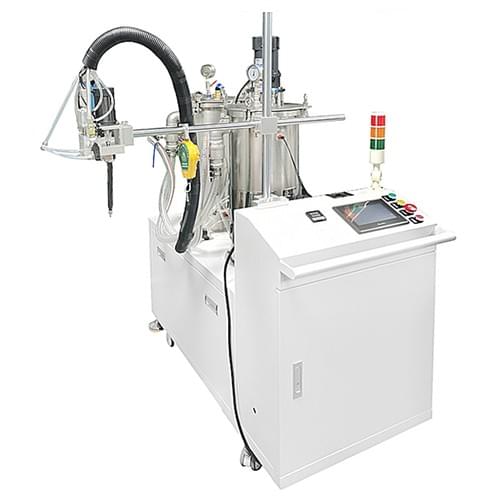

High Quality Filling Machine for Silicone Glue High Temperature

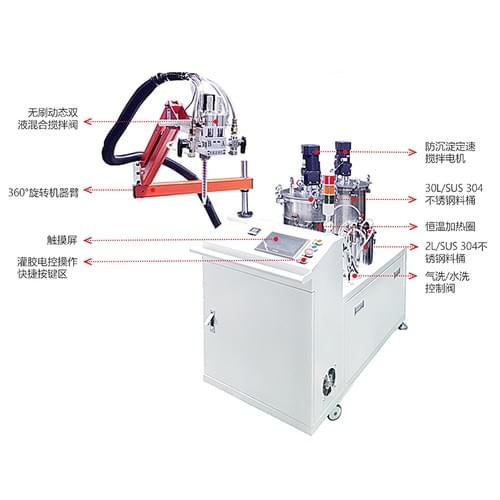

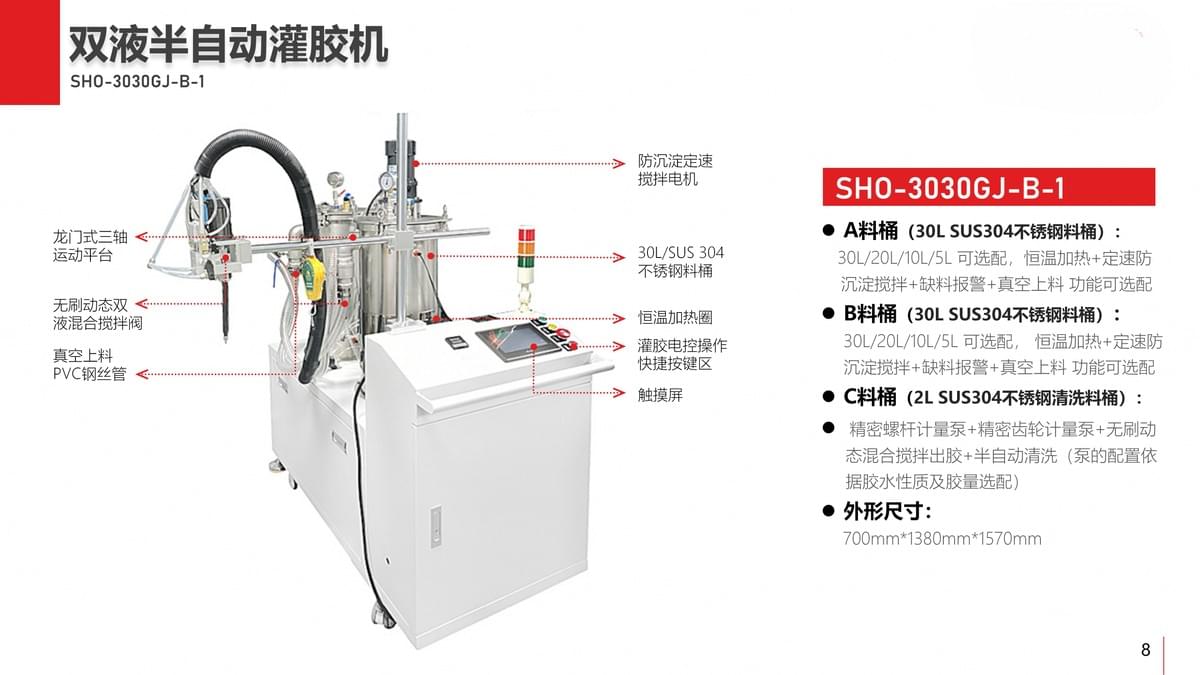

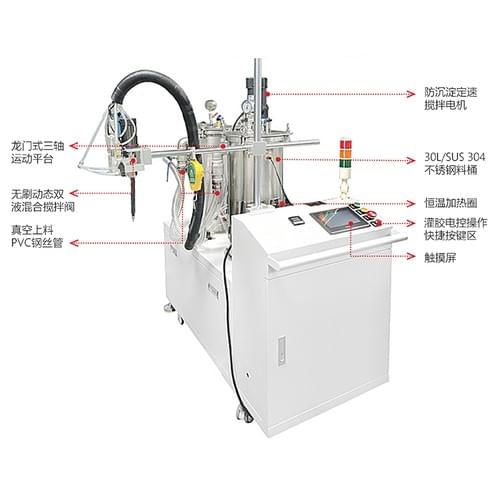

Product description:
Effective stroke
X=500mm Z=100mm
A barrel (20L SUS304 stainless steel barrel):
30L/20L/10L/5L optional, constant temperature heating + constant speed anti-precipitation stirring + lack of material alarm + vacuum feeding function optional
B barrel (10L SUS304 stainless steel barrel): 30L/20L/10L/5L optional, constant temperature heating + constant speed anti-precipitation stirring + lack of material alarm + vacuum feeding function optional
C barrel (2L SUS304 stainless steel cleaning barrel):
Precision screw metering pump + precision gear metering pump + brushless dynamic mixing and stirring glue + semi-automatic cleaning (pump configuration is selected according to the properties of glue and glue amount)
Dimensions:Glue filling part 1380mm*700mm*1570mm
Three-axis motion part 750mm*640mm*1600mm
