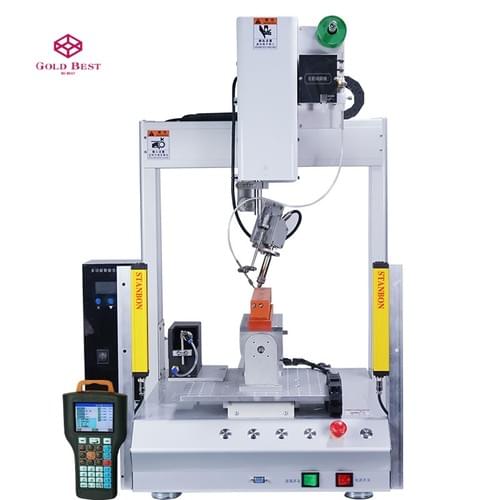

Automatic Soldering System with Rotary Table

Model GB-SL5331-001
Voltage 110V / 220V
Heating Power 150~300W
Preheating Temperature Range 0ºC~550ºC
Axis 5 Operating Range (X * Y * Z) 500 x 400 x 80mm
Movement Speed X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec
Repeat Positioning Accuracy ±0.002mm (X * Y * Z)
Resolution 0.01mm
(X * Y * Z) Maximum Load Weight 8kg (for work platform)
Solder Wire Diameter 0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Program Capacity
Operate Temperature 0ºC~40ºC
Operate Humidity 20~90%
External Dimensions 1040 x 680 x 900mm
Weight about 85kgs
