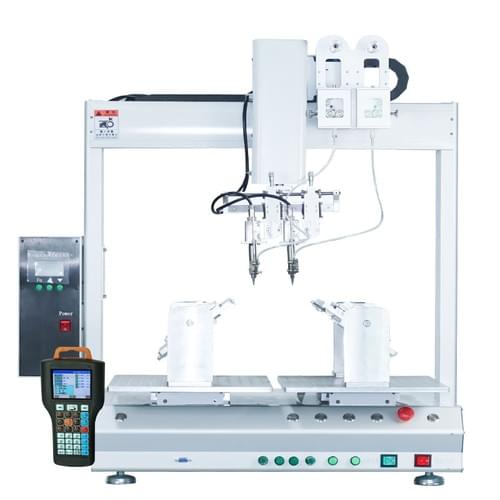

Automatic Desktop Soldering Equipment Double Solder Head Double Station Auto IC PCB Soldering Machin
  • Automatic Desktop Soldering Equipment Double Solder Head Double Station Auto IC PCB Soldering Machin
  • Automatic Desktop Soldering Equipment Double Solder Head Double Station Auto IC PCB Soldering Machin
  • Automatic Desktop Soldering Equipment Double Solder Head Double Station Auto IC PCB Soldering Machin
  • Automatic Desktop Soldering Equipment Double Solder Head Double Station Auto IC PCB Soldering Machin
  • Automatic Desktop Soldering Equipment Double Solder Head Double Station Auto IC PCB Soldering Machin
  • Automatic Desktop Soldering Equipment Double Solder Head Double Station Auto IC PCB Soldering Machin

Automatic Desktop Soldering Equipment Double Solder Head Double Station Auto IC PCB Soldering Machin

Model GB-SL5331-001
Voltage 110V / 220V
Heating Power 150~300W
Preheating Temperature Range 0ºC~550ºC
Axis 5 Operating Range (X * Y * Z) 500 x 400 x 80mm
Movement Speed X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec
Repeat Positioning Accuracy ±0.002mm (X * Y * Z)
Resolution 0.01mm
(X * Y * Z) Maximum Load Weight 8kg (for work platform)
Solder Wire Diameter 0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Program Capacity
Operate Temperature 0ºC~40ºC
Operate Humidity 20~90%
External Dimensions 1040 x 680 x 900mm
Weight about 85kgs
Contact US
Contact US
More Details

5331 Automatic Soldering Machine Easy to Operate5331 Automatic Soldering Machine Easy to Operate5331 Automatic Soldering Machine Easy to Operate

5331 Automatic Soldering Machine Easy to Operate

5331 Automatic Soldering Machine Easy to Operate
5331 Automatic Soldering Machine Easy to Operate5331 Automatic Soldering Machine Easy to Operate
